Supports 3DOF position, or 6DOF position and orientation with optional sensor cubes
Less than 20 milliseconds latency
Easy installation
Resilience to metallic interference
No strobe lights needed
Competitive price
Improved accuracy, range, and performance
These virtual reality tracking peripherals are ideal for precise viewpoint control and intuitive hand interaction in CAVE™ or Powerwall™ display systems.
Wand is a rugged universal interaction device for navigating and manipulating the virtual scene and virtual objects. Used as a standalone device or in conjunction with the Vizard 3D software platform, this is a device your users will appreciate.
Eyes is the world’s lightest-weight and most reliable tracking system for updating users’ point-of-view (PoV) in conjunction with a CAVE™ or Powerwall™ display system.
Long range and low price
LED target

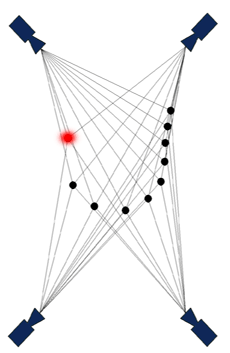

PPT (Precision Position Tracking) solutions break the cost-performance barrier, bringing customers high-quality optical motion tracking to cover very wide ranges (more than 50 x 50 meters) at competitive prices. And the PPT product family continues to grow, bringing more functionality and ease of use to new and existing customers alike. As a real-time system, you get to see tracking results the instant a subject performs a motion. With the system’s power and ease of integration with existing real-time rendering tools, the PPT is an ideal solution for real-time applications such as Virtual Reality.
PPT tracks large areas (more than 50 x 50 meters) while maintaining high precision and accuracy. It presents excellent value for the real-time demands of immersive virtual reality applications. When combined with an off-the-shelf inertial orientation tracker, a PPT hybrid system provides 6DOF motion tracking with unparalleled performance and at an unbeatable price. Experience what you have been missing, start tracking wide areas today!
With the WorldViz 6 DOF hybrid solution you combine the best of two entirely
different tracking concepts. While optical systems are the most precise,
reliable, and cost effective solution for wide-area position tracking,
inertial systems are the top choice for precision orientation tracking.
The long proven WorldViz hybrid system brings these two worlds together,
outperforming traditional systems that rely on only one technology. You
will find no other affordable solution providing more stability and precision.
WorldViz uses a high-speed technique that allows users to calibrate
systems in mere minutes. With the sensors oriented in any way that optimizes
your tracking volume, a small four-point calibration board is used for
accurately defining the entire tracking volume and XYZ coordinate system.
Since our systems uses factory calibrated lenses, you never need to be
concerned about obtaining a satisfactory sensor linearization and you can
rest assured that your workspace will calibrate quickly and robustly.

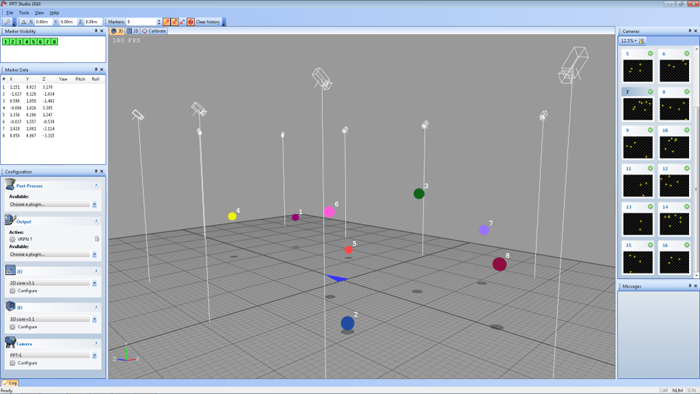

WorldViz PPT Studio 2013 is your easy-to-use “mission control” for all
things related to tracking individual markers or entire actors. PPT Studio
2013 and the accompanying quick start guide will speedily walk you through
the steps of tuning your motion sensing cameras, calibrating the workspace
for accurate tracking, and configuring any optional data processing plug-ins
for your individual needs.
If you’re tracking situation is particularly demanding, you’ll be pleased to learn that PPT Studio 2013 includes some powerful features. For instance, PPT Studio 2013 is capable of calibrating across complex spaces requiring multiply chained frames of reference.
PPT Specification
PPT X
PPT E
Sensor
CCD
CMOS
Maximum Number of Targets
8
32*
Maximum Number of Cameras
8
32*
Maximum camerange
15m**
20m**
Suggested Tracking Space
10m x 10m x 10m
20m x 20m x 20m
Precision (3m x 3m x 3m volume)
< 1mm
< 0.25mm
Accuracy (3m x 3m x 3m volume)
< 0.5mm
< 0.25cm
Horizontal Field of View
68deg (Std)
88deg (Wide)
70deg (Std)
98deg (Wide)
Update Rate
60Hz
180Hz
Image Processing
central CPU
withing camera
Maximum Cable Length
75m
200m
Camera Interface
analog
digital
Processing Interface
RS-232, Ethernet
Ethernet
Camera Size
160mm x 70mm x 60mm
45mm x 32mm x 92mm
Camera Weight
500g
145g
(*) Trade-off between maximum camera / target number. Ask for details.
(**) For a marker to be tracked, it must be visible by two or more cameras.
Overall tracking space dimensions are determined by the camera
